Graphite Electrode Nipple

♦Good thermal conductivity

♦High resistance to oxidation

♦Good stable thermal shock

♦Precise machining accuracy

♦High anti-oxidation capability

Inquire Now

Send E-mail Now

Graphite Electrode Nipple Description

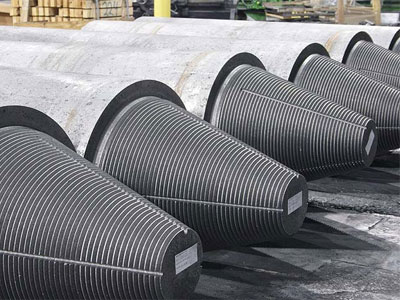

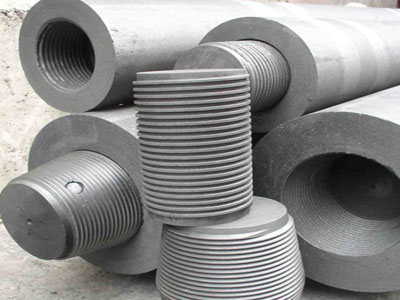

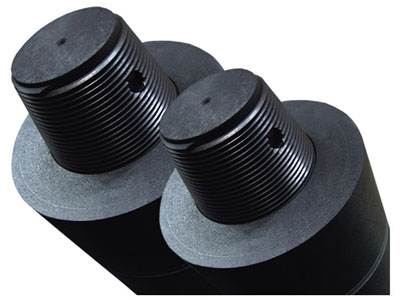

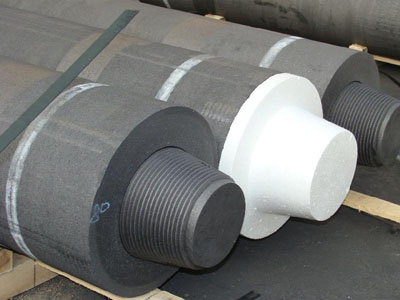

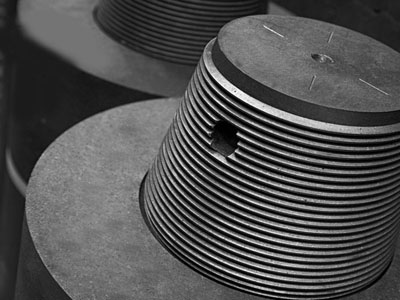

Graphite electrode nipple is the connection component of two electrodes. Graphite electrodes are mainly used in electric arc furnace steel making, refining ladle furnace and other thermal equipment. As graphite electrode is gradually consumed during production and becomes shorter and shorter, new electrode should be connected to promise production. Therefore, graphite nipples are needed for connecting two ends of graphite electrodes. Graphite nipple have the shape of two truncated cones merging at their largest diameters. At each conically-tapering surface of the nipple, screw thread which matches with the internal threads at electrode two ends are provided. So two electrodes are connected together by screwing the nipple.

Graphite Electrode Nipple Technical Parameter

Detailed Parameter of 3TPI Nipple

Dimensions of truncated nipples(3tpi)
Diameter		Nipple							Socket				Pitch
Mm	Inch	D		L		D2		L	D1		H		Pitch
300	12	177.16	-0.5-0	270.90	-1-0	116.90	-5-0	＜10	168.73	0-+0.5	141.50	0-+7	8.47
350	14	215.90	-0.5-0	304.80	-1-0	150.00	-5-0	＜10	207.47	0-+0.5	158.40	0-+7	8.47
400	16	215.90	-0.5-0	304.80	-1-0	150.00	-5-0	＜10	207.47	0-+0.5	158.40	0-+7	8.47
400	16	241.30	-0.5-0	338.70	-1-0	169.80	-5-0	＜10	232.87	0-+0.5	175.30	0-+7	8.47
450	18	241.30	-0.5-0	338.70	-1-0	169.80	-5-0	＜10	232.87	0-+0.5	175.30	0-+7	8.47
450	18	273.05	-0.5-0	355.60	-1-0	198.70	-5-0	＜10	264.62	0-+0.5	183.80	0-+7	8.47
500	20	273.05	-0.5-0	355.60	-1-0	198.70	-5-0	＜10	264.62	0-+0.5	183.80	0-+7	8.47
500	20	298.45	-0.5-0	372.60	-1-0	221.30	-5-0	＜10	290.02	0-+0.5	192.20	0-+7	8.47
550	22	298.45	-0.5-0	372.60	-1-0	221.30	-5-0	＜10	290.02	0-+0.5	192.20	0-+7	8.47

Detailed Parameter of 4tpi Nipple

Dimensions of truncated nipples(4tpi)
Diameter		Nipple							Socket				Pitch
mm	inch	D		L		d2		l	d1		H		Pitch
300	12	177.80	-0.5-0	215.90	-1-0	129.20	-5-0	＜7	171.48	0-+0.5	114.00	0-+7	6.35
350	14	203.20	-0.5-0	254.00	-1-0	148.20	-5-0	＜7	196.88	0-+0.5	133.00	0-+7	6.35
400	16	222.3	-0.5-0	304.80	-1-0	158.80	-5-0	＜7	215.93	0-+0.5	158.40	0-+7	6.35
400	16	222.3	-0.5-0	355.60	-1-0	150.00	-5-0	＜7	215.93	0-+0.5	183.80	0-+7	6.35
450	18	241.30	-0.5-0	304.80	-1-0	177.90	-5-0	＜7	234.98	0-+0.5	158.40	0-+7	6.35
450	18	241.30	-0.5-0	355.60	-1-0	169.42	-5-0	＜7	234.98	0-+0.5	183.80	0-+7	6.35
500	20	269.90	-0.5-0	355.60	-1-0	198.00	-5-0	＜7	263.56	0-+0.5	183.80	0-+7	6.35
500	20	269.90	-0.5-0	181.08	-1-0	181.08	-5-0	＜7	263.56	0-+0.5	234.60	0-+7	6.35
550	22	298.45	-0.5-0	226.58	-1-0	226.58	-5-0	＜7	292.13	0-+0.5	183.80	0-+7	6.35
550	22	298.45	-0.5-0	209.65	-1-0	209.65	-5-0	＜7	292.13	0-+0.5	234.60	0-+7	6.35
600	24	317.50	-0.5-0	245.63	-1-0	245.63	-5-0	＜7	311.18	0-+0.5	183.80	0-+7	6.35
600	24	317.50	-0.5-0	228.70	-1-0	228.70	-5-0	＜7	311.18	0-+0.5	234.60	0-+7	6.35
